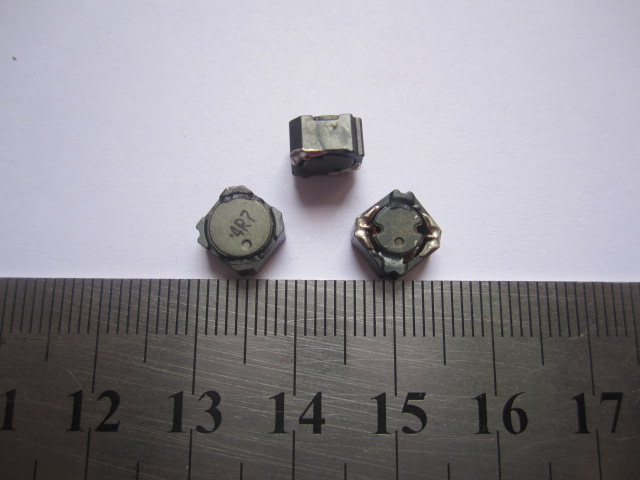

SDRR07645

Feature:

● Ferrite based SMD Inductor with lower core loss.
● Inductance Range:1.2uH to 100uH. Custom values are welcomed.
● High current output chokes, upto 13.0 Amp with max. 35% roll off.
● Low Profile 4.5 mm Max. height.
● Foot Print 7.6 x 7.6 mm Max.
● Ideal for LCD driver,DSC/DVC,Notebook PC and High Density Board Design.
● Operating Temperature Range -55°C to + 130°C, RoHs&HF compliance.
● Tape & Reel Qty: 1000 pcs per reel
