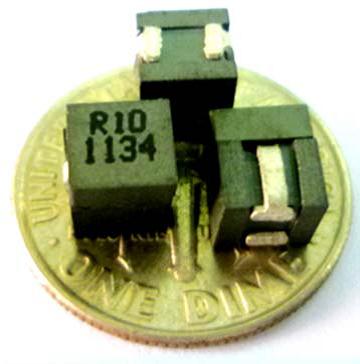

SL2026

Feature:

  • Ferrite based SMD Inductor with lower core loss.
  • Inductance Range:50nH to 120nH. Custom values are welcomed.
  • High current output chokes, upto 52 Amp with max. 20% roll off.
  • Low Profile 6.6mm Max. height .
  • Foot Print 5.5 x 5.0 mm Max.
  • Ideal for Buck Converter, VRM & High Density Board Design.
  • Operating up to 1 MHz application.
  • Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance .
  • T & R Qtys: 800 pcs , 13” Reel.
