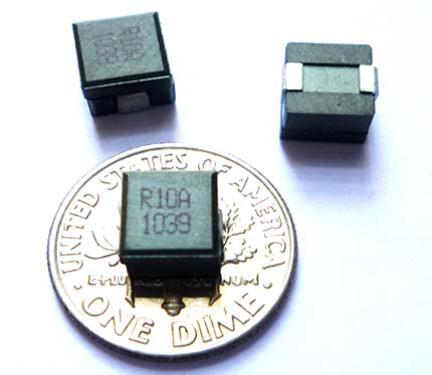

SL2820

Feature:

• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:70nH to 180nH. Custom values are welcomed.
• High current output chokes, upto 66 Amp with max. 20% roll off.
• Low Profile 4.95mm Max. height .
• Foot Print 7.0 x 7.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance .
• T & R Qtys: 1000 pcs , 13” Reel.
