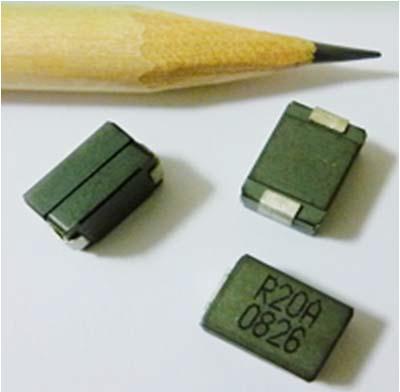

SL4018

Feature:

  • Ferrite based SMD Inductor with lower core loss.
  • Inductance Range:90nH to 300nH. Custom values are welcomed.
  • High current output chokes, upto 72+ Amp with max. 20% roll off.
  • Low Profile 5.0mm Max. height .
  • Foot Print 10.0 x 7.0 mm Max.
  • Ideal for Buck Converter, VRM & High Density Board Design.
  • Operating up to 1 MHz application.
  • Operating Temperature Range -55°C to + 130°C; RoHS compliant.
